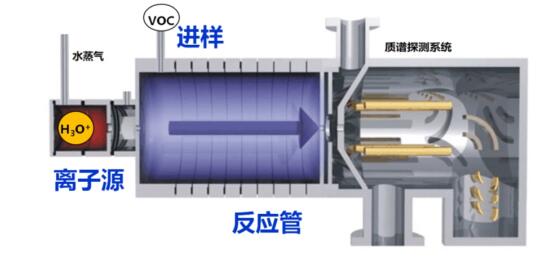

Based on the principle of proton transfer reaction, this product realizes the ionization and mass spectrometry detection of VOCs. It has the characteristics and advantages of fast speed, high sensitivity, many detection species and self-determination. It can be used for navigation patrol of VOCs emission sources, fixed-point monitoring and early warning of toxic VOCs, regional VOCs investigation and research, emergency monitoring of toxic and malodorous gases, etc.
Main performance parameters:
1. Loading mode: fixed point, vehicle, ship, etc;
2. Measured species: common VOCs and other toxic gases;
3. Measurement detection limit: ≤ 0.1ppb;
4. Response time: ≥ 0.1s; (settable, up to 0.1s)
5. Data display: concentration threshold alarm, electronic map real-time display of high-risk areas, etc.
6. Host size (w * D * h): 579 * 553.5 * 961mm (screen open + 250mm)
7. Operating power: ≤ 0.32kw
8. Host weight: ~ 100kg
Application case:
